Modelo: G31MXP-K

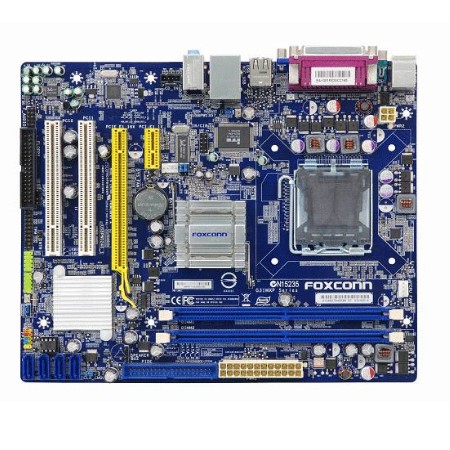

A Placa Mãe Foxconn G31MXP-K LGA 775 Core2 Quad 1333Mhz suporta os processadores (Socket T/ LGA775):
Core 2 Quad
Core 2 Duo
Pentium Dual-Core
Celeron Dual-Core
Celeron
Socket T (LGA775)
Suporta Processadores Intel 45nm Multi-Core

Chipset: Intel® G31 + ICH7

Front Side Bus: 1600(oc**) / 1333 / 1066 / 800MHz

Memória:
Dual channel DDR2 800/667/533 x 2 DIMMs, Max 4GB

VGA on Die: Integrated

Slot para expansão:
1 x PCIe x16
1 x PCIe x1
2 x PCI

IDE: ATA 100 x 1

Serial ATA(SATA)/RAID: SATAII x 4

Áudio: 5.1 channel, Realtek® ALC662

LAN: Gigabit Lan, Realtek® RTL8111B/RTL8111D

Painel I/O Traseiro:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial port
1 x Parallel port
1 x Audio jack supports 3 jacks
1 x VGA port
4 x USB 2.0 ports
1 x RJ45 LAN port

Conectores I/O Internos:
1 x ATX 24-Pin power connector
1 x 4-Pin ATX 12V power connector
2 x 4-Pin CPU/System fan connectors
1 x CD-in connector
1 x Front Audio header
1 x ATA100 connector
1 x Floppy connector
1 x CIR header
1 x Front Panel connector
2 x USB 2.0 connectors support additional 4 ports
4 x SATAII connectors
1 x TPM header
1 x S/PDIF Out header
1 x Speaker header
1 x Intrusion Alarm header

BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI

Fator de Forma: Micro ATX 24.4cm x 20.4cm
