• 1.Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
• 2.L3 cache varies with CPU
• (Some Intel® Core™ processors require a graphic card, please refer CPU support List for more information.)
• Chipset
• 1.Intel® Z77 Express Chipset
• Memory
• 1.4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
• * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
• 2.Dual channel memory architecture
• 3.Support for DDR3 2400(OC)/1600/1333/1066 MHz memory modules
• 4.Support for non-ECC memory modules
• 5.Support for Extreme Memory Profile (XMP) memory modules
• (Please refer Memory Support List for more information.)
• Onboard Graphics
• Integrated Graphics Processor: 1.1 x D-Sub port
• 2.1 x DVI-D port, supporting a maximum resolution of 1920x1200
• * The DVI-D port does not support D-Sub connection by adapter.
• 3.1 x HDMI port, supporting a maximum resolution of 1920x1200
• Audio
• 1.VIA VT2021 codec
• 2.High Definition Audio
• 3.2/4/5.1/7.1-channel
• 4.Support for S/PDIF Out
• LAN
• 1.Atheros GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
• 1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
• (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
• 2.1 x PCI Express x16 slot, running at x4 (PCIEX4)
• * The PCIEX4 slot shares bandwidth with the PCIEX1_2/3 slots. The PCIEX1_2/3 slots will become unavailable when a PCIe x4 expansion card is installed.
• 3.3 x PCI Express x1 slots
• (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
• 4.2 x PCI slots
• Multi-Graphics Technology
• 1.Support for AMD CrossFireX™ technology
• * The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™ is enabled.
• Storage Interface
• Chipset: 1.2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
• 2.4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
• 3.1 x mSATA connector
• * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
• 4.Support for RAID 0, RAID 1, RAID 5, and RAID 10
• * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
• USB
• Chipset: 1.Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
• * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
• 2.Up to 10 USB 2.0/1.1 ports (4 portson the back panel, 6 ports available through the internal USB headers)
• Etron EJ168 chips: 1.Up to 2 USB 3.0/2.0 ports on the back panel
• Internal I/O Connectors
• 1.1 x 24-pin ATX main power connector
• 2.1 x 4-pin ATX 12V power connector
• 3.2 x SATA 6Gb/s connectors
• 4.4 x SATA 3Gb/s connectors
• 5.1 x mSATA connector
• 6.1 x CPU fan header
• 7.3 x system fan headers
• 8.1 x front panel header
• 9.1 x front panel audio header
• 10.1 x S/PDIF Out header
• 11.1 x USB 3.0/2.0 header
• 12.3 x USB 2.0/1.1 headers
• 13.1 x serial port header
• 14.1 x Clear CMOS jumper
• 15.1 x Trusted Platform Module (TPM) header

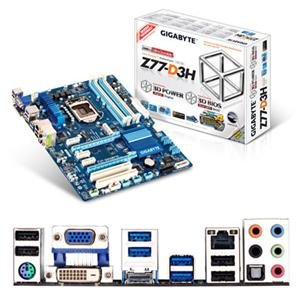

• Back Panel Connectors
• 1.1 x PS/2 keyboard/mouse port
• 2.1 x D-Sub port
• 3.1 x DVI-D port
• 4.1 x HDMI port
• 5.4 x USB 3.0/2.0 ports
• 6.4 x USB 2.0/1.1 ports
• 7.1 x RJ-45 port
• 8.1 x optical S/PDIF Out connector
• 9.5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
• I/O Controller
• 1.iTE I/O Controller Chip
• H/W Monitoring
• 1.System voltage detection
• 2.CPU/System temperature detection
• 3.CPU/System fan speed detection
• 4.CPU overheating warning
• 5.CPU/System fan fail warning
• 6.CPU/System fan speed control
• * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
• BIOS
• 1.2 x 64 Mbit flash
• 2.Use of licensed AMI EFI BIOS
• 3.Support for DualBIOS™
• 4.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
• Unique Features
• 1.Support for @BIOS
• 2.Support for Q-Flash
• 3.Support for Xpress Install
• 4.Support for Xpress Recovery2
• 5.Support for eXtreme Hard Drive (X.H.D)
• 6.Support for Auto Green
• 7.Support for ON/OFF Charge
• 8.Support for Q-Share
• 9.Support for 3D Power
• 10.Support for LAN Optimizer (Intelligent optimization network management tool)
• Bundle Software
• 1.Norton Internet Security (OEM version)
• 2.Intel® Rapid Start Technology
• 3.Intel® Smart Connect Te
